Subsurface Parameters

Substance 3D Painter real-time subsurface implementation is a screen-space subsurface scattering effect. The parameters to control it are explained in this page.
The current implementation is based on the "Approximate Reflectance Profiles for Efficient Subsurface Scattering" method published by PIXAR.

For examples of materials based on these parameters, see: Subsurface Material Type.

Shader/MDL Parameters

Available in the Shader settings window.

Setting

Description

Enable

Activate or Deactivate the Subsurface Scattering effect on this shader/mdl instance.
Can be used to disable the SSS effect on material that don't need it.

Scattering Type

Defines the behavior of the light absorption in the material:

  • Translucent: suited for generic materials such as Jade or Marble where light can penetrate deeply into an object.
  • Skin: suited for organic skin, where light is absorbed quickly and only scatter near the surface.
  • Red Shift/Rayleigh: more accurate than the skin setting to simulate human or creature surface skin.

Scale

Controls the radius/depth of the light absorption in the material. This parameter behavior change depending of the size of the mesh in the scene.

Comparison between a scale of 0.0, 0.2 and 1.0 on a human sized head:

Color

The color of light when absorbed by the material.

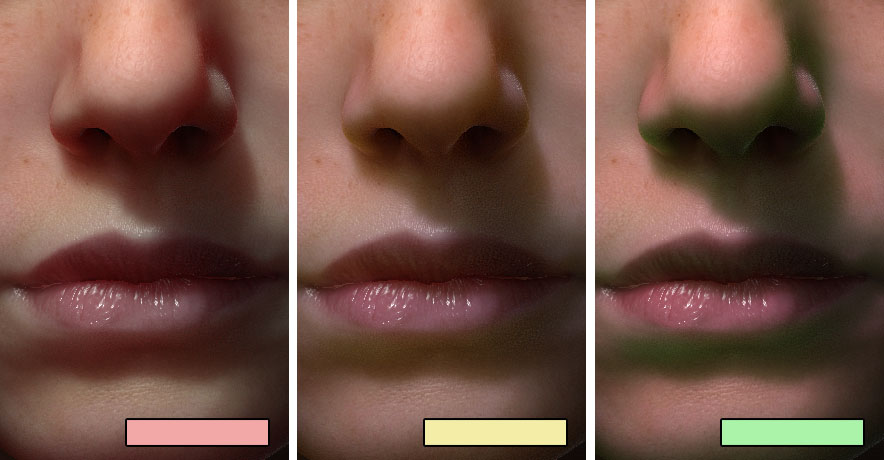

Comparison between three colors :

Display Settings Parameters

Available in the Display settings window.

Note:
This parameter only affect the realtime version of the subsurface scattering effect.

Setting

Description

Sample Count

Controls the amount of samples that will be performed to generate the Subsurface blur in screen-space. More samples means less noise but will impact performances.

Comparison between 8, 32 and 64 samples when looking close to a surface :

Note:
The amount of noise can also be reduced by enabling Camera settings without increasing the amount of samples.

 Adobe

Get help faster and easier

New user?

Quick links

View all your plans Manage your plans
View quick links
Hide quick links

Legal Notices    |    Online Privacy Policy
